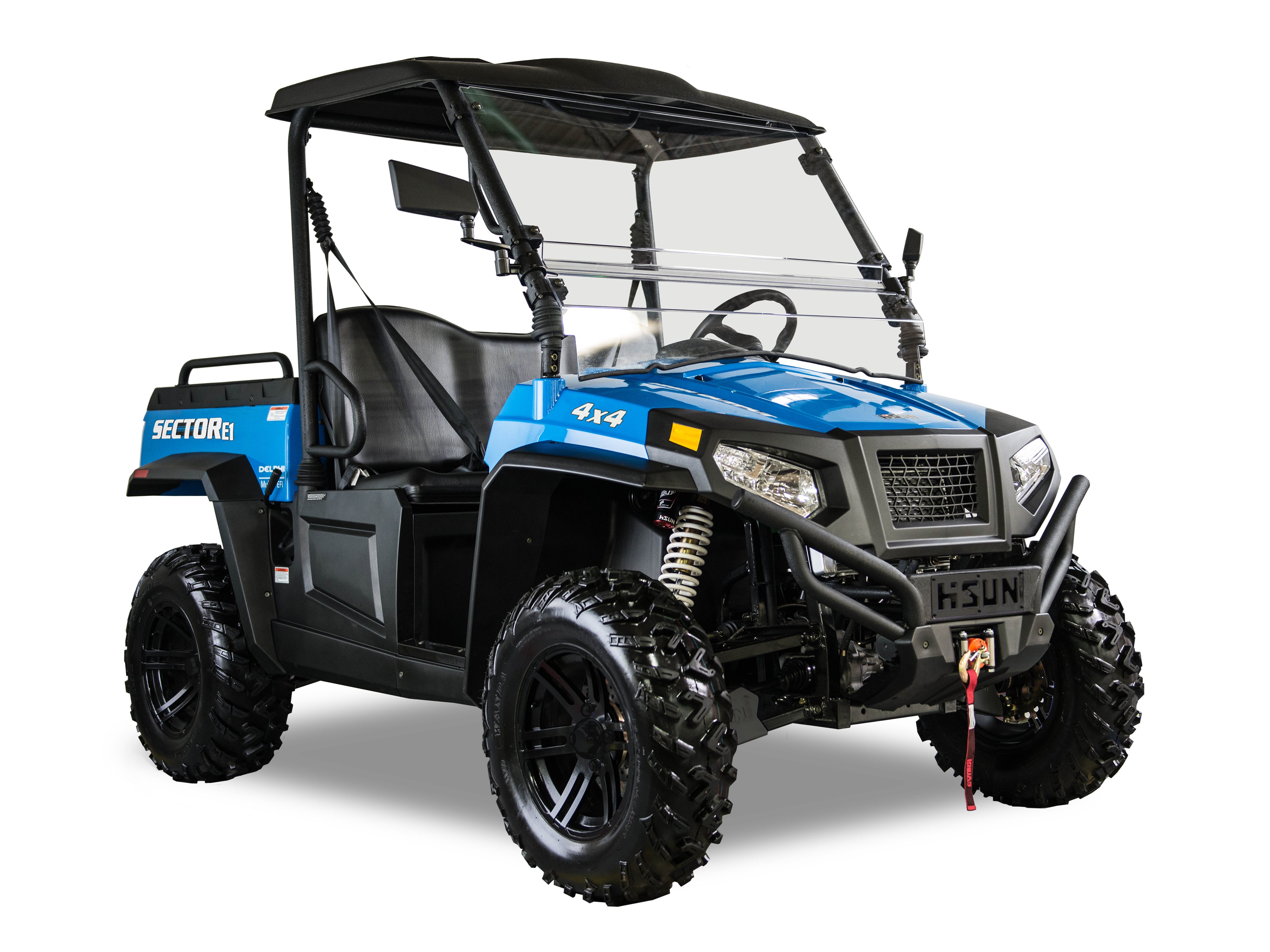

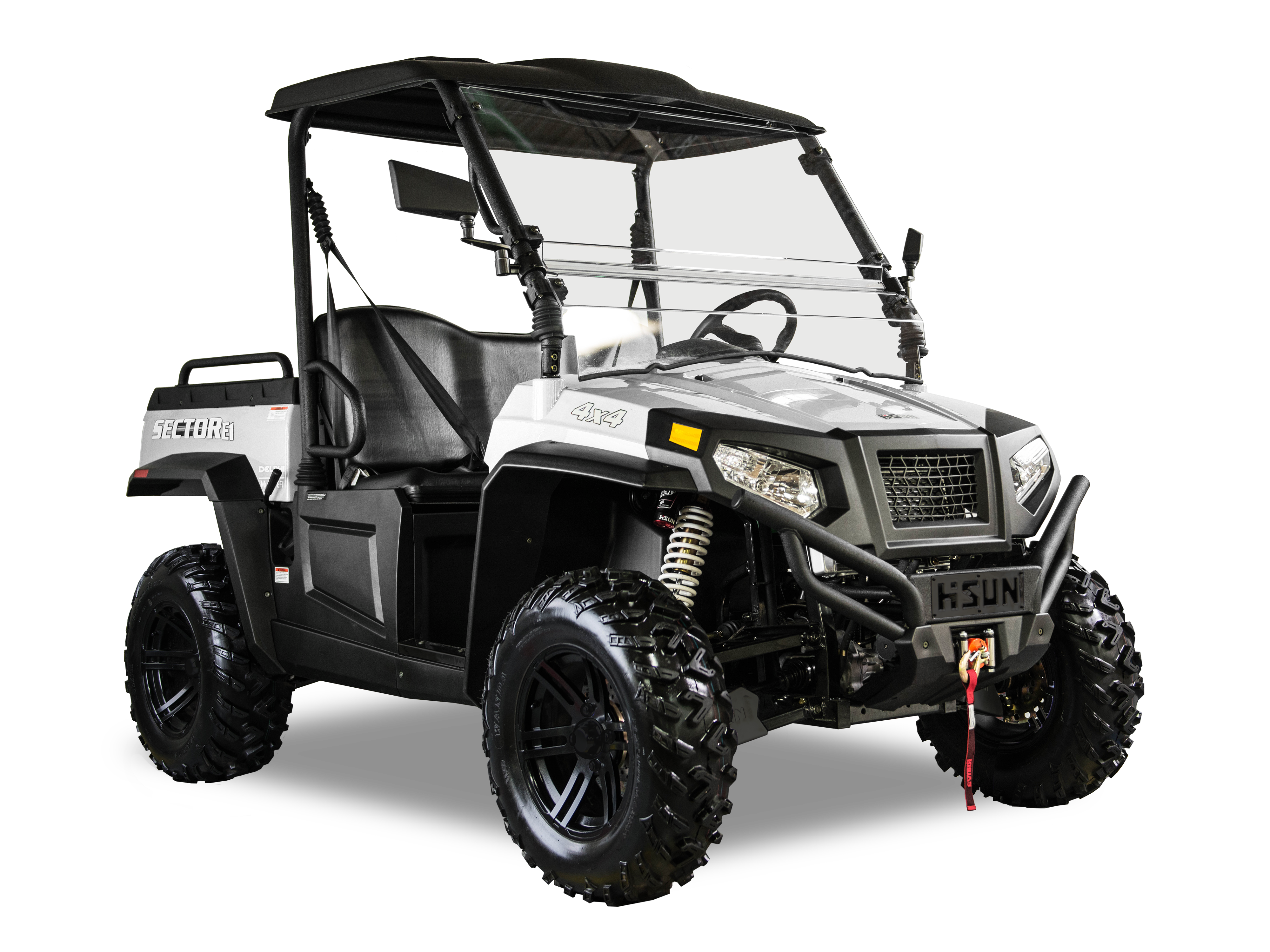

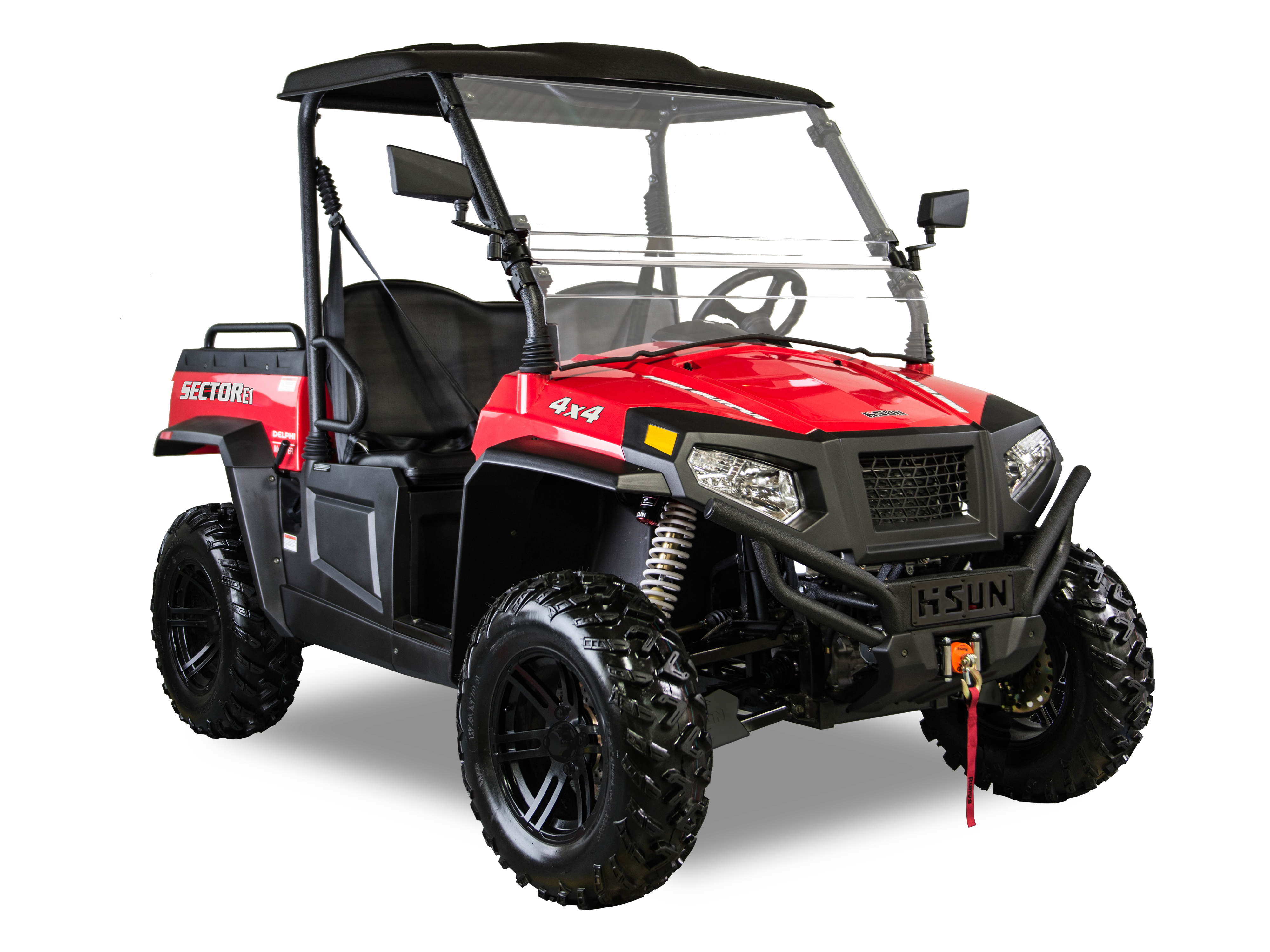

Sector
E1
Starting At
$12,999
MSRP*
*MSRP does not include destination charges, taxes, licenses fee or dealer preparation. An additional fee will apply to CARB models.
The 48 Volt 30 HP AC drive train is powerful enough to go over the toughest terrain without all the noise of a gas-powered engine. Nitrogen-Assisted Independent Suspension and Four-Wheel Hydraulic Brakes will keep you in full control. Built for stability and performance.
*Range estimates assume a fully charged battery pack.
*Additional $500 for Camo
Scroll Right
Features
Starting At
Engine
Roof
Windshield
Winch w/ Mount
Doors
Nitrogen Assisted Shocks
EPS
Hydraulic Cargo Dump
4x4
Locking Differential
Dimensions
Tire
Wheel
Sector E1
$12,999
48
2-Piece
3,500 LBS
Hydraulic W/ Nitrogen Assist
Gas Assist
2WD / 4WD
Front
110" x 62" x 73"
27 x 9-14 / 27 x 11-14
Aluminum
$5999.00
229cc
2-Piece
2,500 LBS
Hydraulic
Gas Assist
2WD
96" x 49" x 64.5"
22 x 7-10 / 22 x 10-10
Aluminum
Specifications
Expand
Close All
MOTOR
Engine Type:
AC Induction
Battery Voltage:
48
Battery Type:
Discover™ Dry Cell
Battery Capacity:
2080 Amp/Hours
Charge Time:
6 - 10 hours
Charging System:
1.2 kW
Horsepower:
30
Torque (ft. lbs.):
220
DRIVE TRAIN
Transmission:
L/M/H/N/R
Drive System:
2WD / 4WD
Locking Differential:
Front
Final Drive:
Direct
Range:
> 42 Miles*
CHASSIS / SUSPENSION / BRAKES
Front Suspension:
Dual A-Arm
Rear Suspension:
Dual A-Arm
Shocks:
Hydraulic W/ Nitrogen Assist
Front / Rear Brakes:
Hydraulic Disc
Parking Brake:
Mechanical
Front Tires:
27 x 9-14
Rear Tires:
27 x 11-14
Wheels:
Aluminum
DIMENSIONS
Overall Vehicle (L x W x H):
110" x 62" x 73"
Wheel Base:
72.5"
Cargo Bed Dimensions (L x W x H):
30" x 41" x 11"
Cargo Bed Dump Type:
Gas Assist
Cargo Bed Capacity:
500 LBS
Person Capacity:
2
Empty Vehicle Weight Rating:
2,061 LBS
Gross Vehicle Weight Rating:
2,764 LBS
Tow Rating:
1,500 LBS
Ground Clearance:
11"
OTHER
Instrumentation:
Analog Speedometer & Tachometer With LCD Rider Information
Winch:
3,500 LBS
Roof:
Yes
Windshield:
2-Piece
Brake Lights:
Yes
Headlights:
High / Low Beam
Turn Signals & Horn:
Yes
Doors:
Not Available
Electronic Power Steering:
Not Available
Warranty:
2-Year Limited
Colors:
Camo, Cavalry Blue, HISUN Red, Black Ops, Destroyer Grey
