SECTOR E1 LSV

$11,699MSRP
*MSRP Does not include destination charges, taxes, licenses fee or Dealer preparation
CHOOSE A COLOR
*ADDITIONAL $300 CAMO UPGRADE

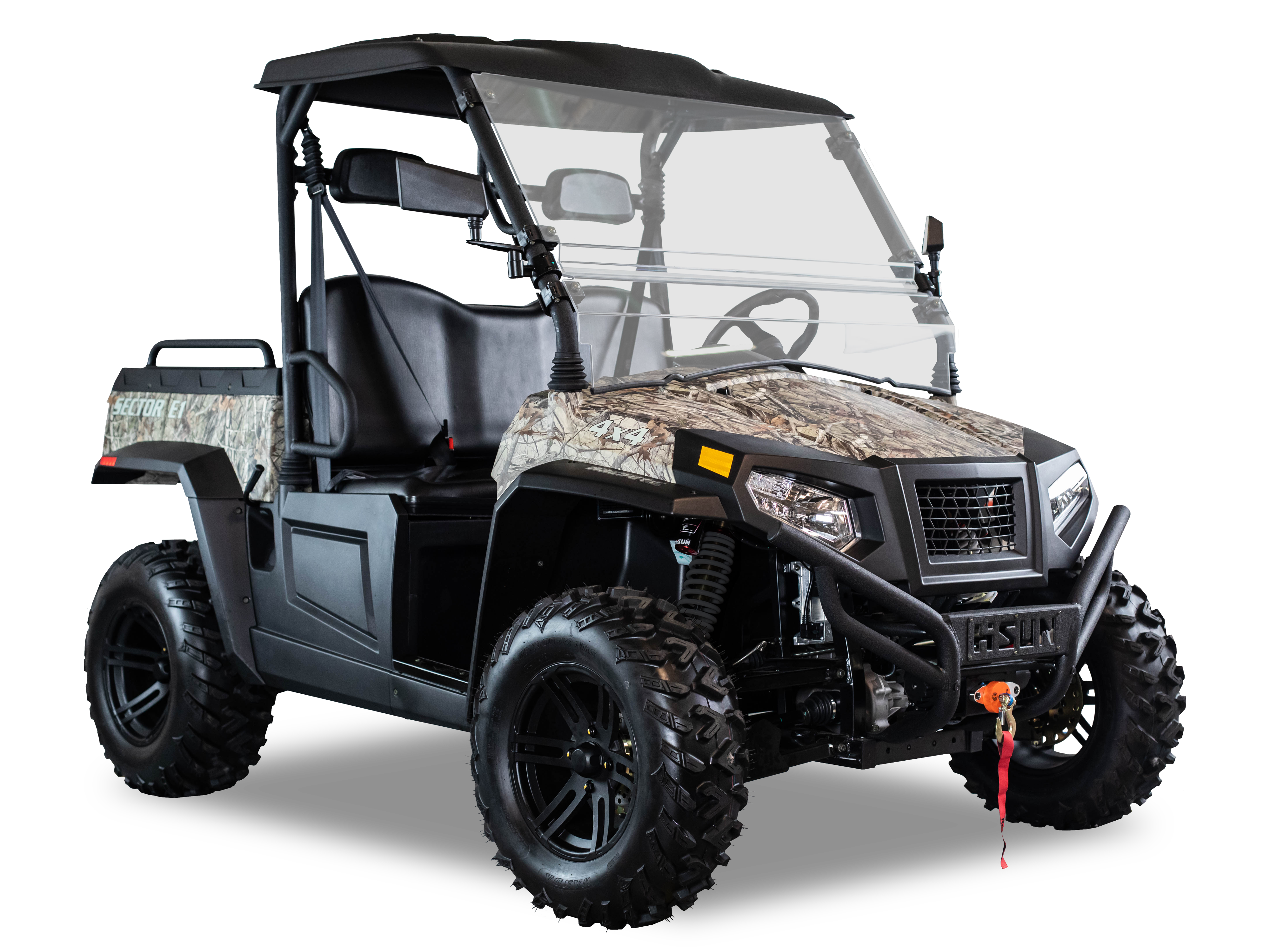

// SECTOR E1 LSV


The 48 Volt 27 HP AC drive train is powerful enough to go over the toughest terrain without all the noise of a gas-powered engine. Nitrogen-Assisted Independent Suspension and Four-Wheel Hydraulic Brakes will keep you in full control. The Sector E1 LSV is also equipped with DOT-certified tires and a DOT certified windshield. Built for stability and performance.



*Range estimates assume a fully charged battery pack.


HIGHLIGHTS
RUN TIME ON A SINGLE CHARGE - OVER 45 MILES*
MAINTENANCE FREE DISCOVER™ DRY CELL BATTERY
48 VOLT, 27 HP WITH OVER 220 FT. LBS. OF TORQUE

SPECIFICATIONS

MOTOR
Engine Type: AC Induction
Battery Voltage: 48
Battery Type: Discover™ Dry Cell
Battery Capacity: 2080 Amp/Hours
Charge Type: 6 - 10 hours
Charging System: 1,200 Watt / On-Board Charger
Horsepower: 30
Torque (ft. lbs.): 220
DRIVE TRAIN
Transmission: L/M/H/N/R
Drive System: 2WD / 4WD
Locking Differential: Front
Final Drive: Direct
Range: > 42 Miles*
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Dual A-Arm
Rear Suspension: Dual A-Arm
Shocks: Hydraulic W/ Nitrogen Assist
Front / Rear Brakes: Hydraulic Disc
Parking Brake: Mechanical
Front Tires: 26 x 9-14 DOT Certified
Rear Tires: 26 x 11-14 DOT Certified
Wheels: Aluminum
DIMENSIONS
Overall Vehicle (L x W x H): 110" x 62" x 73"
Wheel Base: 72.5
Cargo Bed Dimensions (L x W x H): 30" x 41" x 11"
Cargo Bed Dump Type: Gas Assist
Cargo Bed Capacity: 500 LBS
Person Capacity: 2
Empty Vehicle Weight Rating: 2,061 LBS
Gross Vehicle Weight Rating: 2,764 LBS
Tow Rating: 1,500 LBS
Ground Clearance: 11"
OTHER
Instrumentation: Analog Speedometer & Tachometer With LCD Rider Information
Winch: 3,500 LBS
Roof: Yes
Windshield: 2-Piece DOT Certified
Brake Lights: Yes
Headlights: High / Low Beam
Turn Signals & Horn: Yes
Doors: Not Available
Electronic Power Steering: Not Available
Warranty: 2-Year Limited
Colors: Camo, Red, Bahama Blue, White
